Custom Corten Steel Fabrication from Drawings: Buyer Checklist

Custom corten steel fabrication works best when the buyer and factory start from the same technical information. For landscape architects, contractors, importers and outdoor product brands, a clear drawing package helps the manufacturer confirm feasibility, calculate material use, control cost and avoid production delays.

This checklist explains what to prepare before requesting a quote for custom corten steel fabrication, especially for weathering steel planters, fire pits, laser cut screens, edging, gates, facade panels and other outdoor project products.

1. Share the Right Drawing Files

The most useful RFQ starts with drawings that show dimensions, structure and finish expectations. If you already have technical files, send them together instead of sending only a reference photo.

• DWG or DXF for laser cutting, panel patterns and flat parts
• PDF drawings with dimensions, tolerances and notes
• STEP or 3D files for complex assemblies, curves or modular systems
• Reference photos or sketches when the design is still at concept stage

If drawings are not final, Corten Factory can still review concept dimensions and advise whether the product should be made by cutting, bending, rolling, welding, bolting or a combination of processes.

2. Confirm Product Use and Installation Environment

Weathering steel performs differently depending on exposure, drainage and contact with other materials. Tell the supplier where the product will be used: hotel terrace, public park, commercial plaza, garden center display, coastal landscape, facade project or private outdoor living area.

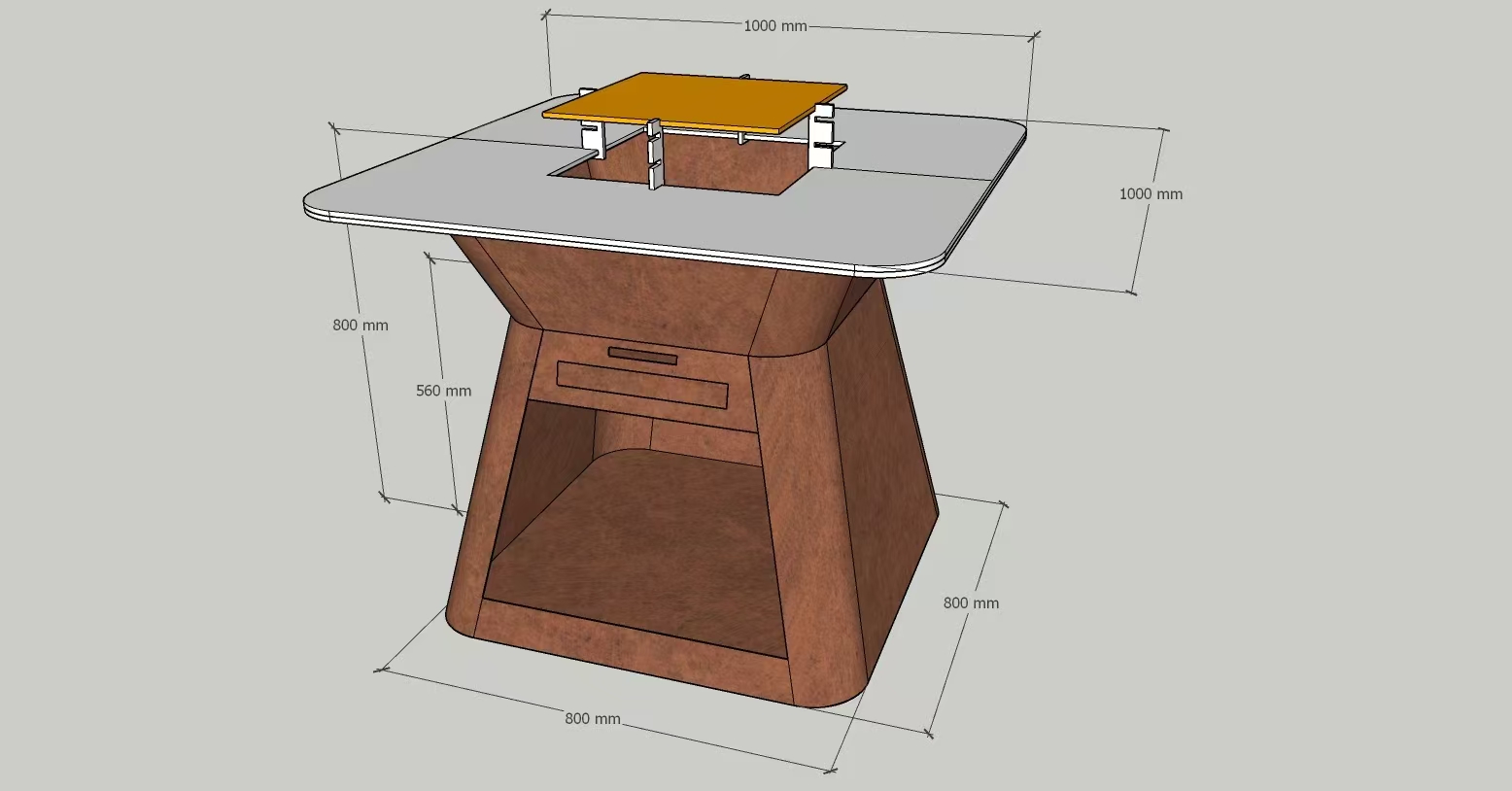

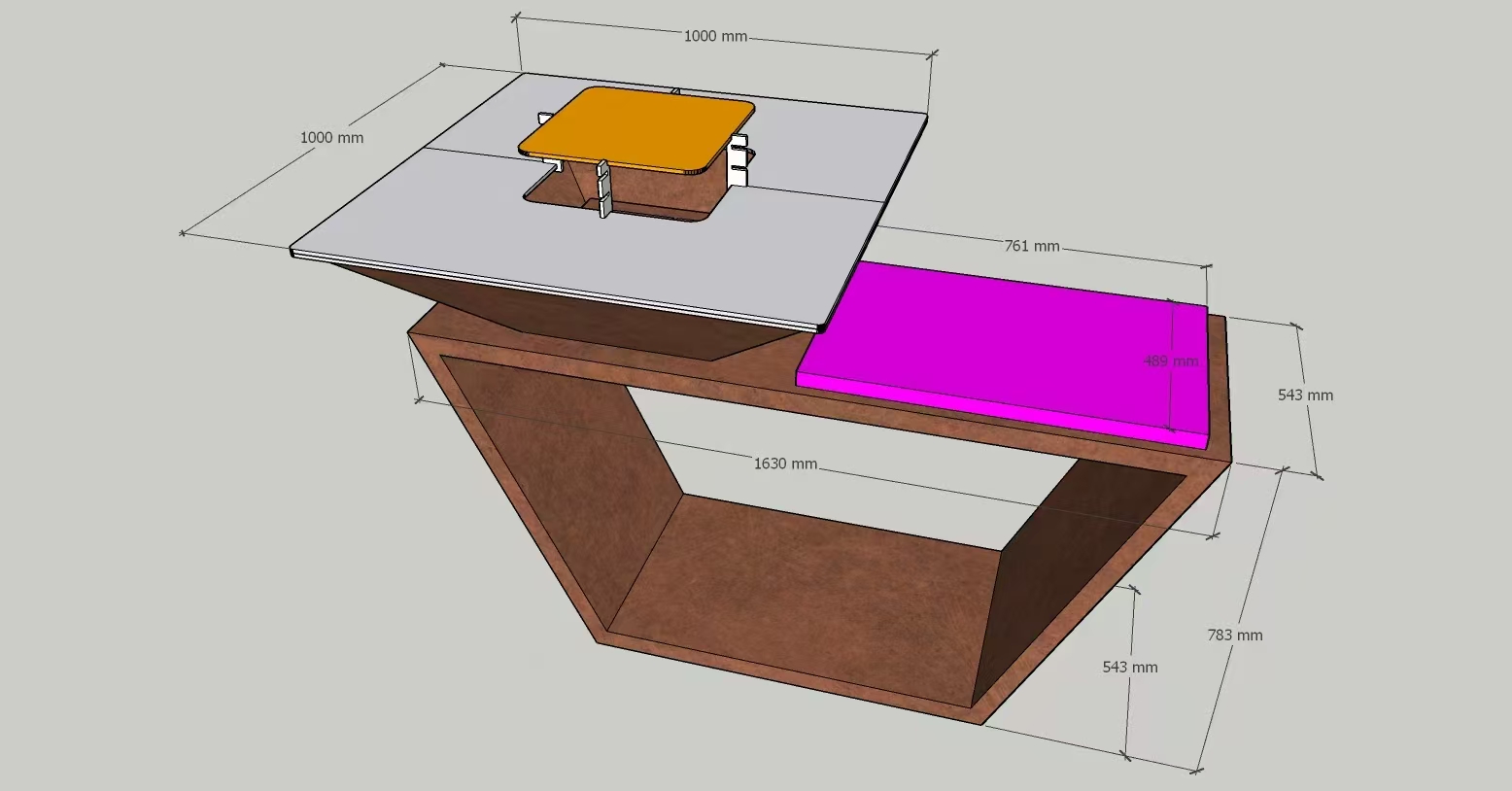

For example, corten steel planter boxes need drainage and soil-loading details. laser cut corten screens need pattern scale, post fixing and wind-load discussion. corten steel fire pits need heat-use information, base design and optional grill or burner coordination.

3. Specify Material Thickness, Steel Grade and Structure

Thickness affects strength, appearance, weight, cost and packing. A decorative screen may use a different thickness from a large planter, facade panel, retaining edge or fire bowl. If the project has an engineer or architect, include the specified thickness and any structural notes in the RFQ.

• Overall length, width, height, diameter or radius
• Plate thickness and reinforcing requirements
• Welded, folded, bolted or modular construction
• Drainage holes, lifting points, anchor holes or removable panels
• Quantity per size and whether future repeat orders are expected

4. Decide the Finish: Raw, Pre-Weathered or Project-Controlled Patina

Corten steel is usually supplied raw and develops a natural rust-colored patina outdoors. Some project buyers prefer a pre-weathered appearance before installation, while others want the product shipped clean and allowed to weather on site. The best choice depends on schedule, appearance requirements, shipping time and local environment.

For visible hospitality, retail or architectural projects, tell the factory whether the surface should be consistent for opening day, or whether a gradual natural patina is acceptable. This helps avoid mismatched expectations between buyer, installer and end client.

5. Request QC Points Before Production Starts

A good custom weathering steel fabrication order should define quality checkpoints before the first batch is made. For OEM/ODM and project orders, useful QC records may include material confirmation, cutting checks, welding inspection, dimensional review, trial assembly photos and final packing photos.

This is especially important for importers, distributors and contractors ordering multiple sizes or containers. Clear QC steps reduce the risk of incorrect hole positions, wrong panel orientation, packing damage or mixed sizes on site.

6. Plan Export Packing and Site Handling Early

Large corten steel products can be heavy, sharp-edged or irregular in shape. Packing should be discussed at quotation stage, not after production. Tell the manufacturer if the goods need forklift access, palletized packing, crate labels, mixed SKU separation, retail labels or container loading plans.

For commercial landscape projects, also confirm whether products will be unloaded at a warehouse, construction site, hotel, port or distributor facility. This affects packing strength and handling instructions.

7. RFQ Checklist for Custom Corten Steel Products

Before sending a quote request to a corten steel fabrication supplier, prepare this information:

• Product type: planter, screen, fire pit, edging, gate, facade panel, sculpture or custom part
• Drawings: DWG, DXF, PDF, STEP, sketch or reference photos
• Dimensions, thickness, quantity and required finish
• Installation environment and any drainage, fixing or assembly details
• Destination country/port and packing requirements
• Target schedule, sample needs and expected repeat order plan

Why Work with a Corten Steel Fabrication Manufacturer?

A manufacturer can review fabrication feasibility before quotation, suggest practical changes to reduce welding or waste, and coordinate production, QC and packing in one workflow. Corten Factory supports custom corten steel fabrication for landscape, architectural and outdoor living projects, including OEM/ODM product development and made-to-drawing production.

Explore our main corten steel products manufacturer page for factory capability, or compare related categories such as corten fencing, trellis and gates for project inspiration.

FAQ

Can you fabricate corten steel products from drawings?

Yes. Send DWG, DXF, PDF, STEP files or reference sketches with dimensions, thickness and quantity. The factory can review cutting, bending, welding, assembly and packing feasibility before quotation.

What information is needed for an accurate custom corten steel quote?

Provide product type, drawings, dimensions, steel thickness, finish preference, quantity, destination and packing requirements. Installation details such as drainage holes, anchors or modular assembly are also helpful.

Can corten steel products be OEM or ODM manufactured?

Yes. OEM/ODM production can be discussed for outdoor product brands, importers, distributors and project buyers. Private dimensions, repeatable SKUs, packing labels and batch QC can be coordinated.

Is pre-weathered corten steel available?

Natural weathering and pre-weathered finish options can be discussed depending on product type, quantity and schedule. For visible projects, confirm appearance expectations before production.

How are large corten steel products packed for export?

Packing may include pallets, wooden crates, protective wrapping, labels and reinforced container loading plans. The best method depends on size, weight, finish sensitivity and destination handling conditions.

Send Drawings for a Custom Quote

Need custom weathering steel products for a landscape, architectural, hospitality or wholesale project? Send drawings, dimensions, quantity and destination to Corten Factory. We can review fabrication feasibility, material thickness, finish, QC steps and export packing before quotation.
