Canada Corten Steel Planters and Raised Garden Beds for Snow-Belt Commercial Landscapes

Canadian commercial landscapes ask more from steel planters than warm-climate projects. Toronto freeze-thaw cycles, Montreal road salt, Calgary chinooks, Vancouver rain, and prairie wind all change how a planter or raised garden bed should be detailed. This guide is written for landscape architects, municipal contractors, developers, and procurement teams buying corten steel planters for plazas, streetscapes, hotels, schools, multi-family podiums, and roof terraces in Canada.

Corten steel is not ordinary rusted mild steel. The alloy contains copper, chromium, nickel, and phosphorus in controlled ranges. When wet and dry cycles are available, the surface forms a dense oxide layer that slows deeper corrosion. This is why the material is used for bridges, rail work, public art, facade cladding, edging, and heavy outdoor planters. For a buyer, the key is not the orange color on day one; it is the correct grade, drainage, detailing, and exposure conditions.

Factory supply should therefore start with the drawing set, not only with a square metre price. A planter that looks simple may need internal ribs, hidden lifting points, drain holes, geotextile separation, adjustable feet, and safe corner radii. A screen may need post calculations, base plates, drainage gaps, and a finish procedure that avoids staining during the first rain cycles. A water feature needs a water chemistry plan and a sacrificial or coated wet zone. These decisions affect freight, site labour, and maintenance long after the purchase order is placed.

Why Canadian buyers specify Corten planters instead of painted boxes

Painted mild steel can look tidy at handover, but snow shovels, de-icing salt, planter maintenance, and forklift handling often chip the coating. Once paint fails, corrosion starts under the film and the repair is visible. Corten steel accepts surface weathering as part of the design language, so minor abrasion does not create the same patch-repair problem.

For raised garden beds in public or semi-public space, corten also gives weight and vandal resistance. The material pairs well with granite paving, concrete unit pavers, timber seating, native grasses, and low-water planting schemes used in Canadian urban design.

The main warning is salt. Corten performs best with wet-dry cycles and open air. In zones with constant chloride exposure, poor drainage, or standing snow mixed with de-icing chemicals, the design should include isolation from salty slush, larger drain paths, and a clear maintenance note.

• Use Corten steel planters for urban plazas, streetscape trees, hotel entries, rooftop amenity decks, school gardens, and commercial raised beds.
• Avoid direct contact between corten runoff and pale limestone, light concrete, or unsealed paving unless staining has been accepted by the design team.
• Specify removable liners or internal coating if the planter will hold saturated soil through winter.
• Ask the factory for pre-drilled drainage, internal ribs, lifting points, and packing designed for Canadian site handling.

Recommended technical specification for Canada projects

The following specification notes are written for landscape architects, architects, contractors, and procurement managers preparing a tender package. They are not a substitute for local engineering, but they give a practical starting point for factory quotations and shop drawing review.

Material choices: Corten steel compared with common alternatives

Corten is often selected because it ages into the landscape rather than fighting the climate with a painted finish. Still, it is not the right answer for every detail. The table below helps teams compare realistic options before issuing a bill of quantities.

Canadian climate notes: freeze-thaw, snow loading and de-icing salt

In much of Canada, planters experience repeated freezing and thawing rather than a single stable winter freeze. Water expands in soil, gravel pockets, and blocked drains. If the bottom detail traps water, the planter can bulge or push on paving. A raised bed without a folded rim can also distort when frozen soil presses outward.

Snow storage plans matter. A planter placed next to a sidewalk may become a snow bank edge. Snow ploughs and shovels can scrape the face, and salty meltwater can sit at the base. The specification should show where snow will be stored and how meltwater will leave the planter zone.

For Vancouver and coastal British Columbia, constant rain is the bigger issue. Corten needs air movement. Planters pressed against damp walls or sitting in shaded puddles can stay wet too long. Feet, spacers, and open underside details help the patina dry between rain events.

Drainage, run-off and staining control

The drainage design should be visible on the shop drawing. Canadian contractors should not be asked to drill random holes on site after the planters arrive. Holes need enough area to pass water, but they also need geotextile and aggregate layers so soil does not wash through and stain paving.

• Set planters on 10-25 mm spacers or adjustable feet where wet paving is expected.
• Use multiple drain holes rather than a single outlet; ice can block one opening.
• Specify overflow weeps above the base for large tree planters.
• Keep corten runoff away from white concrete, limestone, pale porcelain, and finished timber.
• For roof decks, coordinate drainage with the waterproofing consultant before ordering.

Sizing, thickness and cost planning

Prices vary with steel grade, sheet thickness, cutting time, welding length, surface treatment, packing density, and ocean freight. For early budgeting, buyers should ask for itemised pricing rather than a single lump sum. The numbers below are planning bands only; the final quotation should be based on drawings, quantities, Incoterms, and destination port.

Installation details contractors should not leave to site improvisation

Before installation, confirm finished levels. Corten planters look heavy and permanent; if they sit out of level, the error is easy to see. On plazas, use non-staining packers and leave an air gap beneath the base. On roof terraces, coordinate weight with the structural engineer and waterproofing warranty requirements.

Do not place raw corten directly on newly installed light paving without a staining plan. Early weathering releases more oxide than mature corten. Temporary protection, controlled pre-weathering, or a gravel band can prevent disputes during handover.

For raised beds, assemble on a flat surface and tighten bolts after squaring the module. If the bed will be filled with deep soil, cross ties or internal braces may be needed to prevent long walls from bowing.

• Check crate labels against the planter layout before moving units across the site.
• Use fabric slings or padded forks; steel chains can scar visible faces.
• Install geotextile, drainage aggregate, and soil layers exactly as specified.
• Keep irrigation emitters away from corten walls if constant wetting is not intended.
• Photograph drainage and liners before filling for warranty records.

Project applications in Canada

Urban streetscapes in Toronto, Ottawa and Montreal

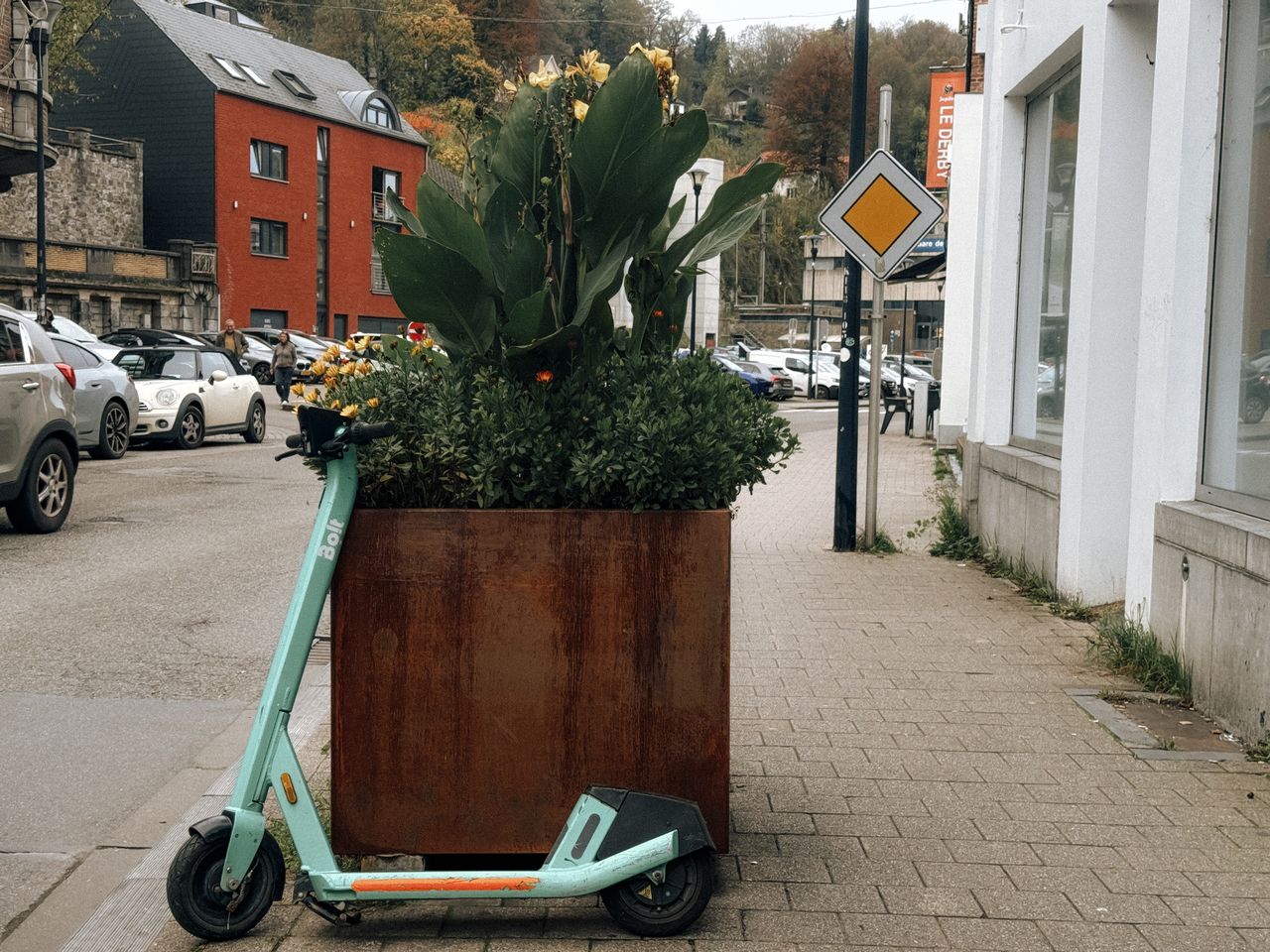

Corten planters can define pedestrian zones without looking temporary. Use heavy bases, visible corner protection, and planting mixes that tolerate salt drift from sidewalks.

Rooftop amenity decks in Vancouver and Calgary

Lightweight soil blends and modular planters help control load. Adjustable feet keep air below the planter and allow drainage to reach the roof deck outlets.

Commercial raised beds for schools and hospitality

Raised beds create usable planting space where native soil is poor or contaminated. Specify rounded top edges, tamper-resistant fasteners, and replacement panels for long service life.

Procurement checklist for B2B buyers

A good corten package is bought once and installed cleanly. A weak package creates expensive site questions: missing anchors, mismatched patina, damaged corners, water trapped behind panels, or stained stone paving. Use this checklist before approving a supplier.

• Mill certificate for weathering steel grade
• Shop drawings showing thickness, welds, ribs, drain holes, feet and lifting points
• Planter layout with item numbers matching crate labels
• Alt finish decision: raw, pre-weathered, or sealed sample
• Drainage and staining plan approved by landscape architect
• Packing photos before shipment and receiving inspection form
• Spare bolts, touch-up guidance for cut edges, and maintenance note

Factory fabrication, packing and shipping notes

For custom projects, CortenFactory can fabricate planter boxes, raised beds, landscape edging, privacy screens, facade panels, fire pits, water bowls, and sculptural steel work from shop drawings or design intent sketches. Related pages include large rectangular Corten steel planters, outdoor raised garden Corten steel planters, custom Corten steel fabrication, Canada planter specification guide, contact CortenFactory for project pricing.

For export orders, request welding photos, dimensional checks, packing photos, and a spare parts list before shipment. Nested parts reduce freight, but they should not create abrasion marks on visible corten faces. For large panels and planters, crates should include fork pockets or lifting guidance so the receiving contractor does not damage finished edges during unloading.

Common Buyer Questions

Will Corten steel survive Canadian winters?

Yes, when detailed with drainage, air movement, and sensible salt control. The alloy is used in demanding outdoor infrastructure, but a planter full of wet soil is not the same as an exposed bridge girder. Internal lining, drain holes, and raised feet are important.

Should Canadian planters be shipped pre-weathered?

Pre-weathering can reduce early runoff and gives a more settled look at installation. Raw corten is cheaper and will weather on site, but the first months can stain adjacent paving if not controlled.

What thickness should I specify for a public planter?

For many commercial planters, 3.0 mm is a practical starting point. Large tree planters, long walls, or high-impact public zones may need 4.0-6.0 mm with internal ribs.

Can Corten raised beds be used for edible gardens?

Yes, but use a geotextile or food-safe liner between soil and steel if the project requires conservative soil management. Confirm local client standards for schools, childcare, and public food gardens.

Clear purchasing advice

For Canada, buy corten planters as a detailed system rather than decorative boxes. Put drainage, salt exposure, lifting, roof load, and staining control in the quotation request. If the project is near heavy de-icing salt or coastal spray, ask for an internal liner or consider stainless steel for the most exposed wet details.

Useful external references for project teams: Canadian Centre for Occupational Health and Safety winter work guidance, National Research Council Canada building codes information, ASTM weathering steel standards search.

Designing the planter build-up from outside face to planting soil

A cold-climate planter should be thought of as a layered assembly. The visible corten shell is only one part. Behind it, the project may need a separation liner, insulation board for sensitive roots, drainage aggregate, geotextile, irrigation sleeves, overflow holes, and a planting soil mix that does not slump after the first freeze-thaw season. When the buyer only specifies the outside dimensions and colour, each contractor fills in the missing details differently. That creates inconsistent performance across a large site.

For commercial streetscapes, the inner face of the planter often sees a harsher environment than the exterior. Fertilisers, wet compost, de-icing salt carried by boots, and irrigation water can sit against the steel for months. A sacrificial liner or coating on the internal soil contact zone is a small cost compared with replacing a welded planter after it has been filled, planted, and surrounded by paving.

Tree planters need special care. A small ornamental grass planter may drain through the base with little issue, but a street tree container holds a deeper soil column and much more water. The design should include a false bottom or drainage cell if the planter sits on a roof deck, and it should include inspection access if irrigation or aeration pipes are included. The shop drawing should label these items clearly so the receiving contractor does not remove them as packing waste.

Root volume and soil depth

Landscape architects in Canada often need to balance root volume with structural load. Deep corten boxes look good, but filling the entire volume with saturated soil can be heavy. For roof terraces and podium landscapes, use lightweight soil blends and false bottoms to reduce dead load. For public realm tree planters on grade, deeper soil may be acceptable, but the walls must resist lateral pressure and winter expansion. Long walls should have welded ribs or concealed cross ties rather than relying on plate thickness alone.

Specification language buyers can copy into an RFQ

A useful RFQ should ask the factory to price the planter as a finished assembly. The text below can be adapted for tenders: supply custom weathering steel planters fabricated from certified ASTM A588, ASTM A606 Type 4, or equivalent weathering steel plate; provide folded top rims, ground exposed welds, internal stiffeners as required, drain holes and overflow weeps shown on shop drawings, optional internal liner to soil contact areas, adjustable non-staining feet, item labels matching layout drawings, and export packing suitable for forklift unloading.

The RFQ should also state what is excluded. Soil, planting, irrigation components, anchors to waterproofed roof slabs, and local engineering stamps may need to be by others. Clear exclusions prevent price comparisons from becoming misleading. One supplier may include liners and feet while another quotes only the steel shell. The cheaper line item can become more expensive once site labour is added.

Maintenance plan after handover

Corten planters do not need repainting, but they still need a maintenance plan. During the first weathering season, crews should rinse heavy oxide deposits from dark paving, clear drain holes, and avoid piling salty snow against the same face all winter. After the patina matures, inspections can be less frequent, but blocked drainage should still be treated as a defect rather than a housekeeping issue.

• Inspect drain holes after leaf fall and spring thaw.
• Do not use harsh acids to clean rust marks unless the paving supplier approves the method.
• Touch up damaged internal liners before refilling soil.
• Record any planter movement on roof terraces after major storms.
• Replace missing rubber feet or isolation pads before steel contacts finished paving.

Cold-climate detailing examples by product type

Rectangular streetscape planters

A rectangular planter for a Canadian main street should usually have folded top edges, welded corners, hidden internal ribs, multiple base drains, and a base detail that lifts the shell clear of wet paving. If it is used as a traffic calming element or pedestrian separator, the design team should decide whether it is decorative or protective. Decorative planters are not crash barriers, and the tender should not imply that they will stop a vehicle unless the system has been engineered and tested for that purpose.

For long runs, avoid making one very long welded box unless the site has equipment to unload and position it. Modular planters with aligned joints are easier to ship and replace. If the project needs a continuous visual line, use concealed connector plates or a shared coping detail.

Raised beds for community and school projects

School and community gardens often need a safer top edge than purely commercial planters. A folded rim or rounded cap reduces the chance of cuts when children lean over the bed. Tamper-resistant bolts can prevent panels from being loosened. If edible planting is planned, confirm whether the client wants a liner for soil separation. This is often a policy decision rather than a material requirement.

Movable seasonal planters

Some Canadian hospitality projects move planters between summer patio layouts and winter storage. In that case, include forklift pockets, lifting eyes, or pallet bases from the start. Dragging a corten planter across paving damages both the planter and the surface. Movable units also need a drainage plug or removable tray if they are stored indoors during winter.

Quality inspection before shipment

Because corten products are heavy and custom-sized, rework after arrival is expensive. The buyer should ask for inspection photos that show overall dimensions, diagonal measurements, weld quality, drain holes, liner areas, feet, packing, and item labels. A short factory inspection video can be more useful than a perfect catalogue photo because it proves the actual goods exist and match the schedule.

The patina will not be uniform on raw corten before weathering. That is normal. What should be rejected are sharp burrs, missing drainage, wrong thickness, warped walls, unprotected visible faces inside the crate, and item numbers that do not match the layout. If pre-weathering is ordered, the approved sample should set the acceptable colour range, not a single exact tone.

How to write a fair supplier comparison

Procurement managers often receive quotes in different formats. To compare them fairly, create a matrix with columns for steel grade, thickness, finish, liner, drain detail, feet, stiffeners, packing, freight term, drawing service, lead time, and warranty wording. A low price without drawings and packing may move cost to the contractor. A higher price that includes labelled crates, shop drawings, and liners may reduce site risk.

For Canadian projects with union labour or tight seasonal windows, site time has real value. A planter that arrives ready to place before the planting season can be worth more than a cheaper shell that needs drilling, lining, and repair on site. Ask the installer which details would save labour before approving the purchase order.

Seasonal programme and delivery timing

Canadian landscape work is often compressed into a short construction season. If planters arrive late, the site may miss the planting window or pay for temporary storage and protection. For imported corten planters, allow time for drawing approval, fabrication, quality checks, ocean freight, inland transport, customs clearance, and final delivery to site. A realistic programme is better than forcing rushed production and then discovering missing drains or wrong crate labels.

For winter deliveries, plan indoor or covered storage if the planters are raw and the project does not want uncontrolled early weathering. If the units are stored outdoors, keep them off wet ground, separate faces with breathable spacers, and avoid plastic wrapping that traps condensation. The goal is to protect the steel from handling damage while still allowing air movement.

If the project needs an opening-ready appearance, order a pre-weathered sample early and approve the colour range. Weathering steel is not a paint colour; every panel will vary. The procurement record should state that natural variation is expected, while still rejecting oil stains, packing marks, and poor workmanship.

Questions to resolve before issuing shop drawings

Before shop drawings are approved, the buyer should confirm whether each planter is freestanding, ballasted, mechanically fixed, or integrated with seating. The answer affects base plate design, drain position, lifting points, and packing. It also changes who is responsible for waterproofing penetrations on roof decks.

Confirm the expected planting system as well. A planter for seasonal annuals needs a different internal depth and drain layer than a planter for street trees or tall grasses. If irrigation is included, sleeve positions should be cut at the factory rather than drilled beside finished paving. If electrical lighting is integrated into the planter base, cable access and heat separation should be shown on the drawing.

Finally, agree the acceptable handover condition. Some owners want bright raw steel that weathers after opening. Others want a mature patina before guests or tenants see the space. Both are valid, but the choice changes lead time, runoff planning, and the way crates are opened on site.

Red flags in low-quality planter quotations

• No steel grade or certificate is listed.
• Drain holes are described vaguely as “as required” with no drawing.
• The planter is quoted without feet, liners, or stiffeners even though the specification requires them.
• The supplier cannot show packing photos for similar export planters.
• The offer treats pre-weathering as an exact paint colour rather than a controlled natural process.
